Replacement Pall Hydraulic Filter Element

60-inch Ultipleat High Flow large format filter HFU660GF200H13

Description: High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost
INQUIRY EMAIL

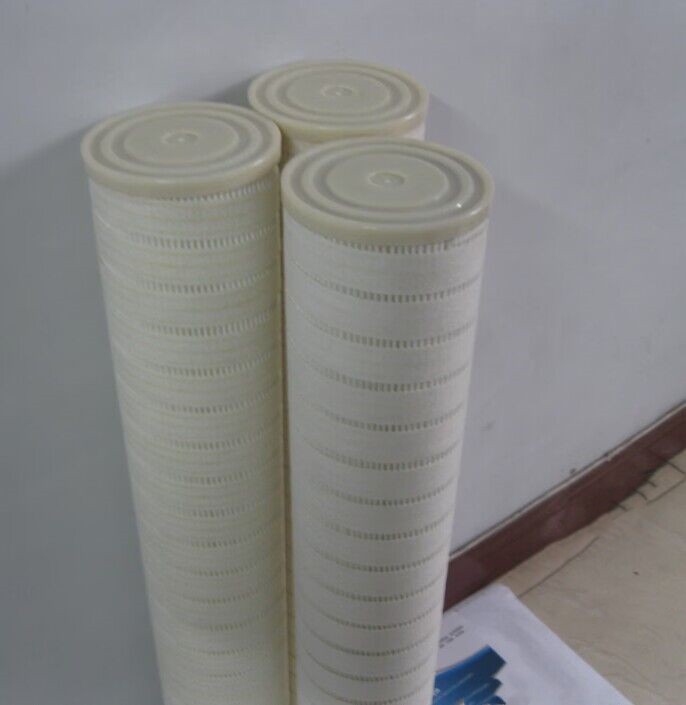

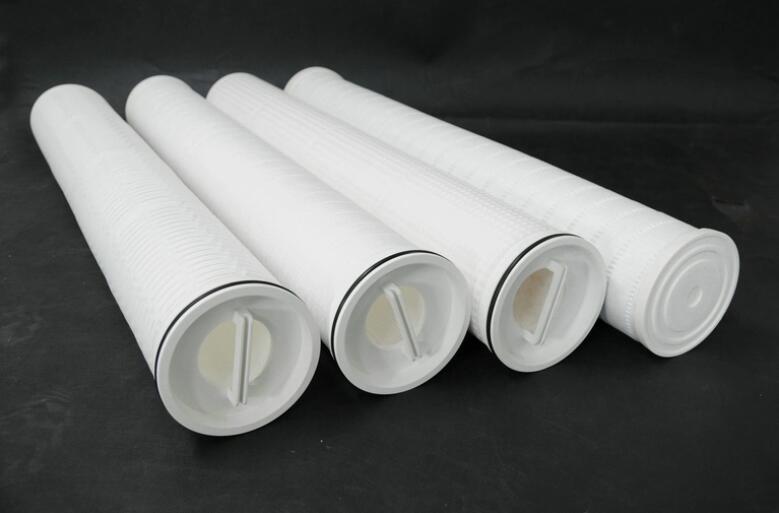

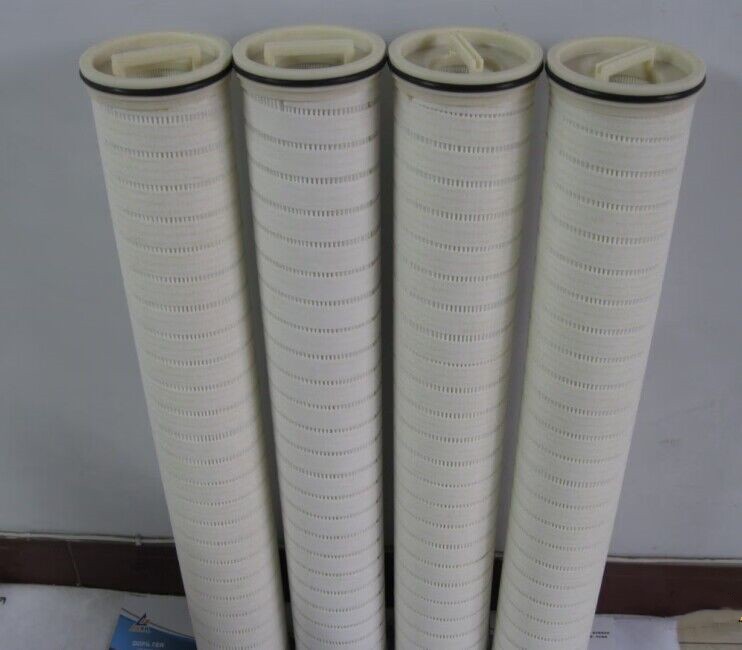

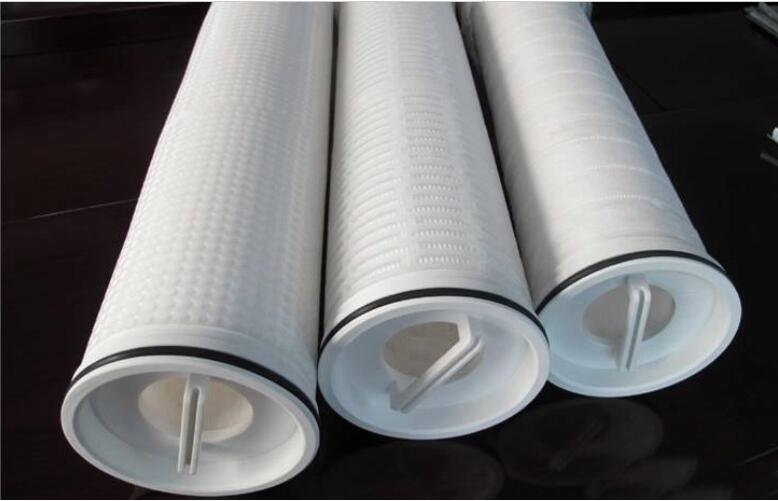

Replacement 60-inch Ultipleat High Flow large format filter HFU660GF200H13

Descriptions of the industrial high flow pleated filter cartridge:
High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.

Applications of the industrial high flow pleated filter cartridge:
• Prefiltration of RO,Pretreatment of sea water desalination
• Bottled water, high Fructose,edible oil,soft drinks
• API, solvents,and water filtration in BioPharm market
• Paints and coatings,Petrochemical,Refineries
• Microelectronics

Specifications of the industrial high flow pleated filter cartridge:
• Material of Construction
• Media: Pleated glass fiber, Pleated depth PP, or Melt blown PP
• Support layer: Polypropylene
• End adaptor: Glass fiber reinforced Polypropylene
• Seal Material:Silicone,EDPM, Buna
• Micron Rating: 1um, 4.5um, 6um, 10um,20um,40um,70um,100um
• Filtration Area: 20.69 inch length is 660LPM; 40.69 inch length is 1,300LPM; 60.69 inch length is 1,900LPM.

Dimensions of the industrial high flow pleated filter cartridge:
• Outside diameter: 6" (152mm)
• Length: 20.69 inch(525mm)/ 40.69 inch(1033mm)/ 60.69 inch(1541mm)

Recommended Operating Conditions of the industrial high flow pleated filter cartridge:
Maximum Operating Temperature:
•Pleated glass fiber:121°C
•Pleated PP: 82°C
•Melt Blown PP: 65°C
•Maximum Differential Pressure: Pleated glass fiber:3.4bar at 121°C
•Pleated PP: 3.4Bar at 82°C
•Melt Blown:1.03Bar at 65°C
•Recommended Change out Differential Pressure:2.4Bar at 20°C

Outside Diameter:	6 inch(152mm)
Length:	20 inch(528mm),40 inch(1022mm),60 inch(1538mm)
Filter media:	Pleated glass fiber Pleated depth Polypropylene (PP) PP Melt blown
Support/Drainage:	Polypropylene (PP)
End caps :	Glass fiber reinforced Polypropylene
Seal Material :	EPDM, NBR
Removal Rating:	1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm
Maximum Operating Temperature:	Pleated glass fiber:121°C Pleated PP: 82°C Melt Blown PP: 65°C
Maximum Differential Pressure:	Pleated glass fiber:3.4 Bar at 121°C Pleated PP: 3.4Bar at 82°C Melt Blown:1.03Bar at 65°C
Recommended Change out Differential Pressure:	2.4Bar at 20°C
Suggested maximum Flow of water:	20 inch length:660LPM 40 inch length:1,300LPM 60 inch length:1,900LPM
