Product Selection
Stated flflows are for operation at 7 bar g (100 psi g) with reference to 20°C, 1 bar a, 0% relative water vapour pressure.
For flows at other pressures apply the correction factors shown.

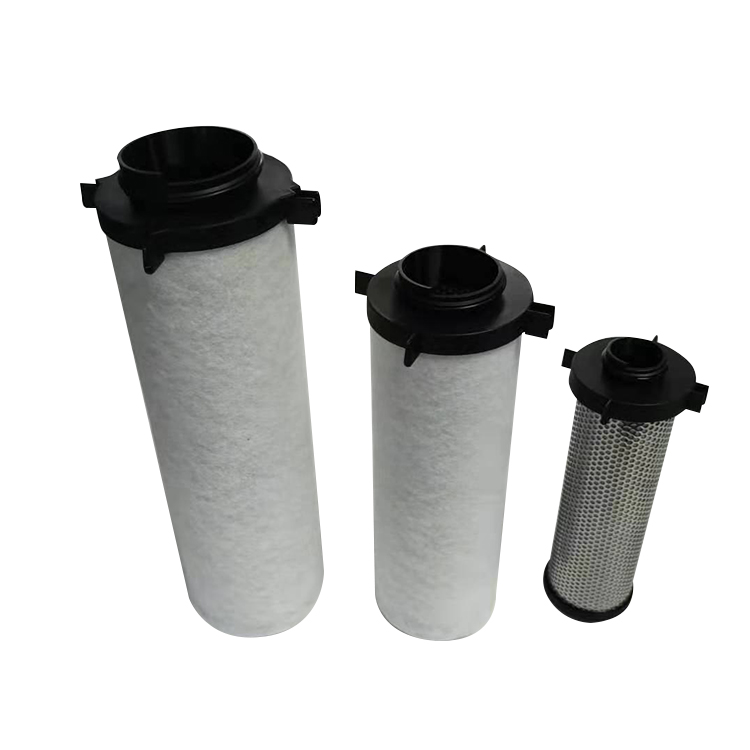

Model | Port Size | Flow Rate | Replacement
Element kit
|
m³/min | m³/hr | scfm | l/sec |
(Grade)-006- □□ | 1/4" BSPP | 0.6 | 36 | 21 | 10 | E006-(Grade) |
(Grade)-010- □□ | 1/2" BSPP | 1 | 60 | 36 | 17 | E010-(Grade) |
(Grade)-020- □□ | 3/4" BSPP | 2 | 120 | 72 | 34 | E020-(Grade) |
(Grade)-030- □□ | 1" BSPP | 3 | 180 | 106 | 50 | E030-(Grade) |
(Grade)-045- □□ | 1" BSPP | 4.5 | 270 | 161 | 76 | E045-(Grade) |
(Grade)-060- □□ | 1" BSPP | 6 | 360 | 216 | 102 | E060-(Grade) |
(Grade)-080- □□ | 1.1/2" BSPP | 8 | 480 | 286 | 135 | E080-(Grade) |
(Grade)-100- □□ | 1.1/2" BSPP | 10 | 600 | 360 | 170 | E100-(Grade) |
(Grade)-120- □□ | 1.1/2" BSPP | 12 | 720 | 432 | 204 | E120-(Grade) |
(Grade)-150- □□ | 2" BSPP | 15 | 900 | 540 | 255 | E150-(Grade) |
(Grade)-180- □□ | 2" BSPP | 18 | 1080 | 646 | 305 | E180-(Grade) |
(Grade)-210- □□ | 2" BSPP | 21 | 1260 | 754 | 356 | E210-(Grade) |
(Grade)-250- □□ | 3" BSPP | 25 | 1500 | 898 | 424 | E250-(Grade) |
(Grade)-350- □□ | 3" BSPP | 35 | 2100 | 1257 | 593 | E350-(Grade) |
(Grade)-400- □□ | 3" BSPP | 40 | 2400 | 1437 | 678 | E400-(Grade) |
