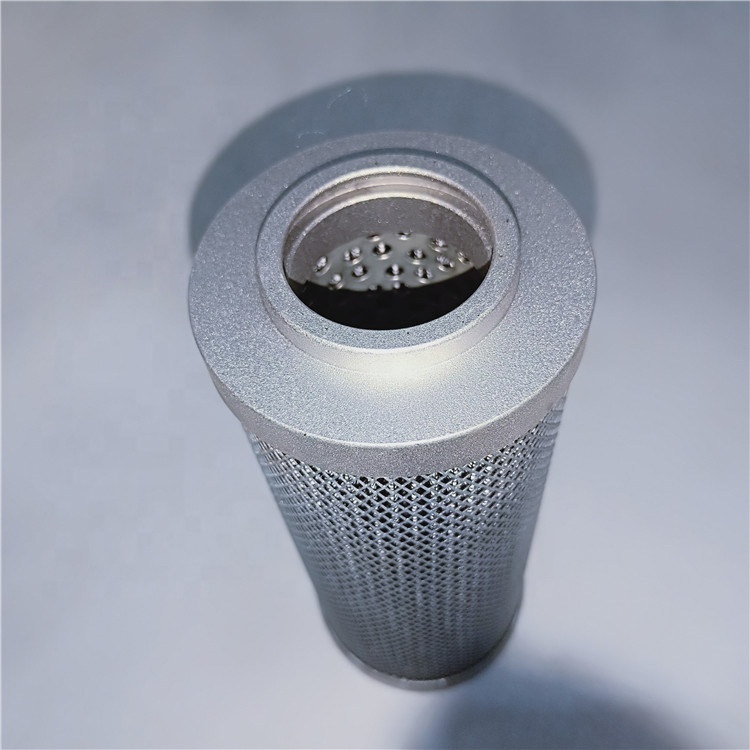

Parker934121QRacing Filter Elements

Whatsapp Me

●Parker filter element parameters;

1. Filtration accuracy: 1~100μm Filtration ratio: X≧100
2. Working pressure: (MAX) 21Mpa
3. Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol, etc.
4. Working temperature: -30℃~110℃
5. Filter material: use high-quality glass fiber filter material
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
7. Scope of use: used in the filtration of pressure oil in hydraulic and lubrication systems to filter out pollutants in the system and ensure the normal operation of the system

●HYDAC hydraulic filter model interoperable with Parker hydraulic filter

HYDAC hydraulic filter	Parker hydraulic filter
0330R010BN3HC	PR3309Q
0950R010BN3/HC	935906
0660R005BN3HC	PR3325Q
0660R010BN3HC	PR3326Q
0500D010BN3HC	937080Q
0240D005BN3HC	PR3144Q
0330D010BN3HC	PR3174Q
0060D010BN3HC	R3058Q
0240D010BN3HC	PR3135Q
0110D010BN3HC	PR3087Q
www.jyzyfilter.com

 ●PALL hydraulic filter, intercommunicating parker hydraulic filter

PALL filter element model	Parker hydraulic filter
HC9600FKS16H	926888Q
HC8304FKN39H	937166Q
HC8900FKS26H	933220Q
HC8314FKN39H	934122Q
HC9020FKZ4H	937184Q
HC8314FKN16H	934309Q
HC8900FKS39H	937182Q
HC8314FKP39H	934121Q
HC8314FKP16H	934308Q
HC9801FDP8H	935193Q
HC8314FKT39H	934124Q
HC8304FKN16H	937165Q
HC9600FKT16H	930164Q
HC9600FKS4H	PR3437Q
www.jyzyfilter.com

●Parker filter element features:

  1 Replace PARKER Parker filter element has good filtration performance, and can exert uniform surface filtration performance for filtration particle size of 2-200um.
  2 Replace PARKER Parker filter element with good corrosion resistance, heat resistance, pressure resistance and abrasion resistance;
  3 Replace PARKER Parker filter element with uniform and precise filtration accuracy;
  4Replace PARKER Parker filter element for various hydraulic environments; it can be used again after cleaning, no need to replace.

●Parker filter element product application field:

  1Petrochemical industry, oil field pipeline filtration; fuel oil filtration equipment, engineering machinery equipment and water treatment industry equipment filtration;
  2 Pharmaceutical and food processing fields: rated flow: 80-200l/min; working pressure: 1.5-2.5pa; filtration area (m2): 0.01-0.20; filtration accuracy (μm): 2-200 μm.
  3Suitable for pre-processing and post-processing systems in the electronics, petroleum, chemical, pharmaceutical, food and other industrial sectors. To further purify the suspended impurities (less than 2~5mg/L).
